AEM Infinity Series 5 (506/508) Plug & Play Adapter Harness - 00-05 S2000

Complete Stand Alone Engine Control
The Infinity ECU combines with the Plug & Play harness to replace the factory ECU. It controls all of the engine functions and the Plug & Play wiring harness adapter eliminates the need for cutting and splicing wires.

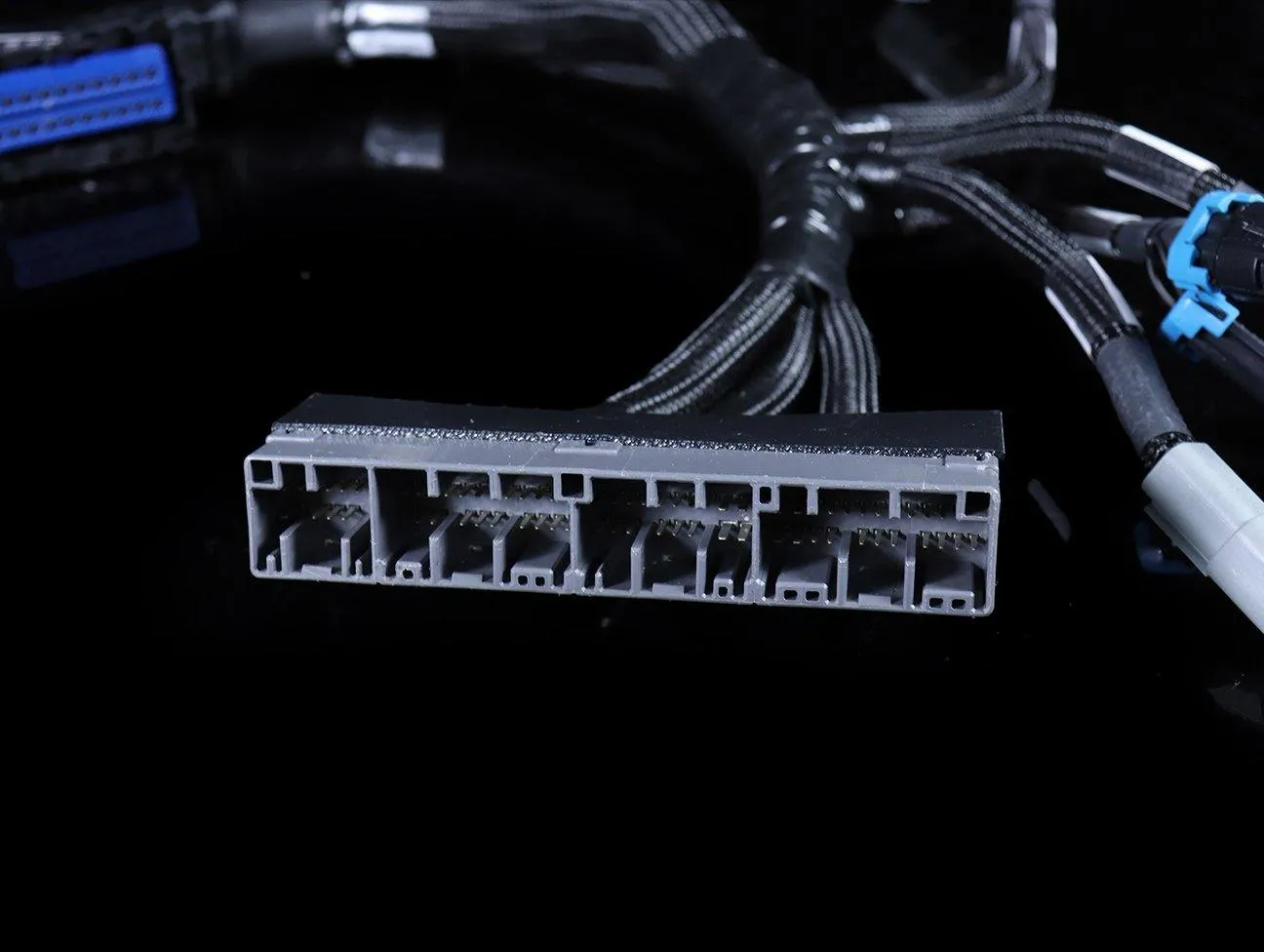

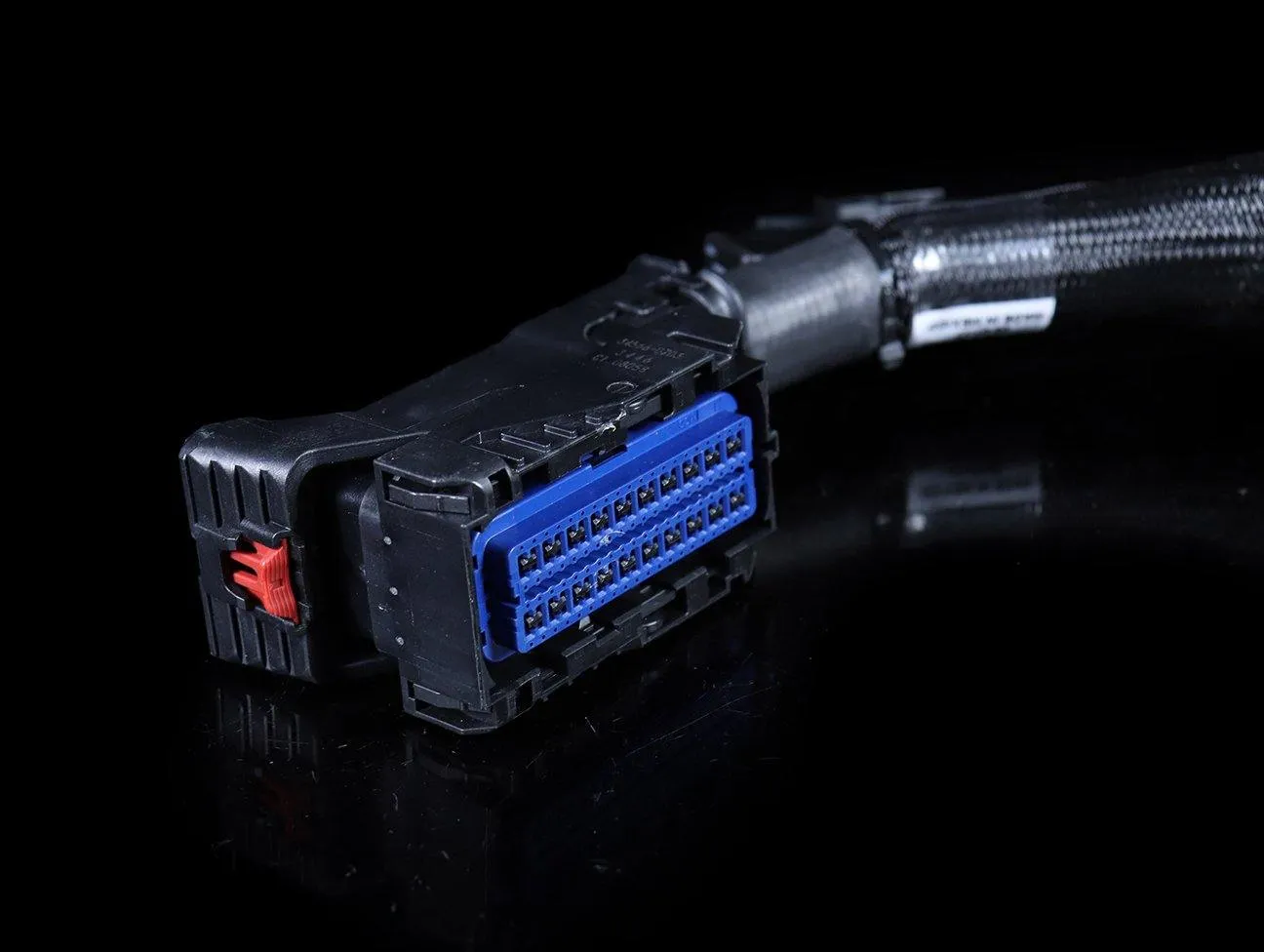

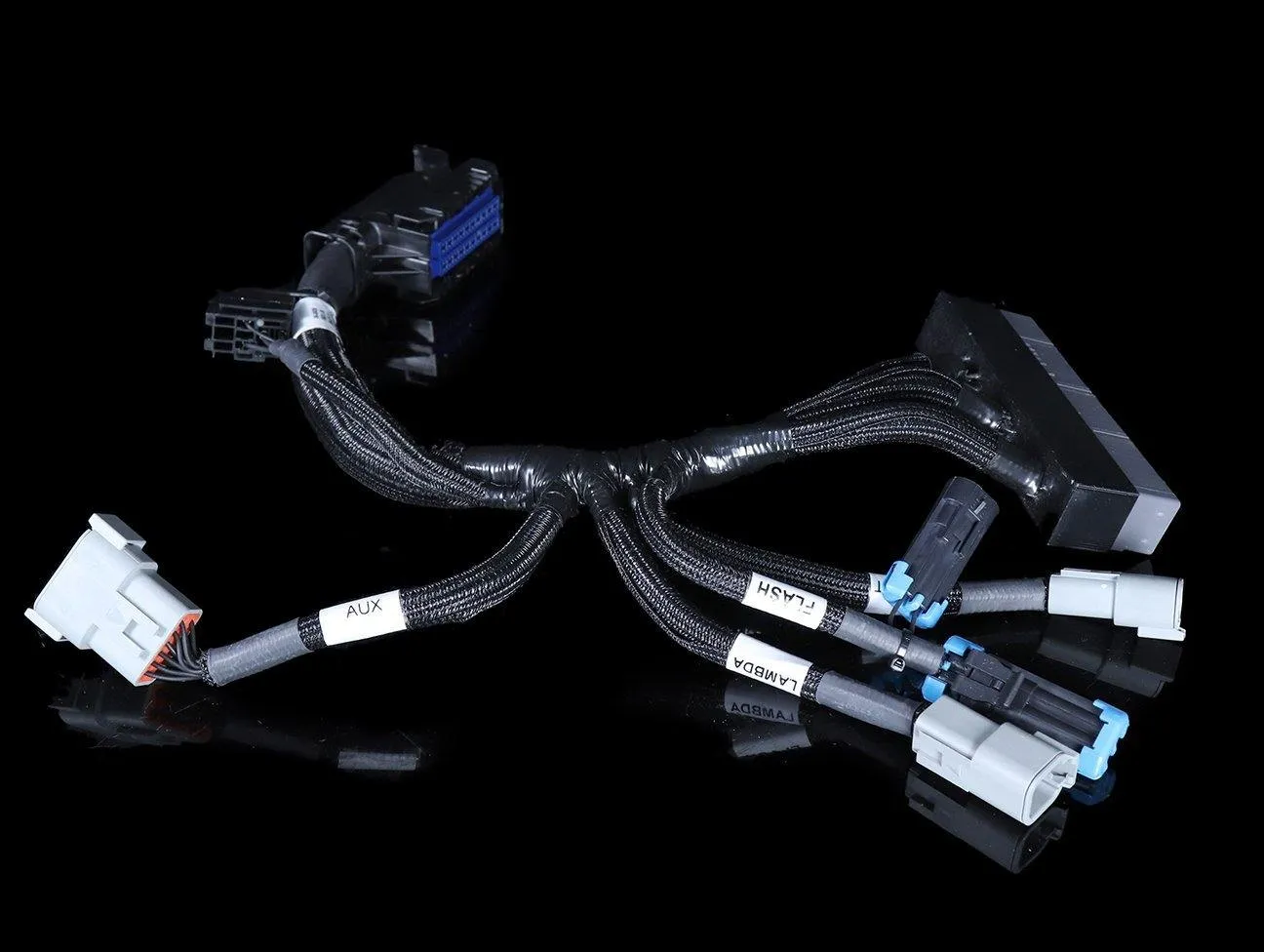

Plug & Play Harness with Expansion Port

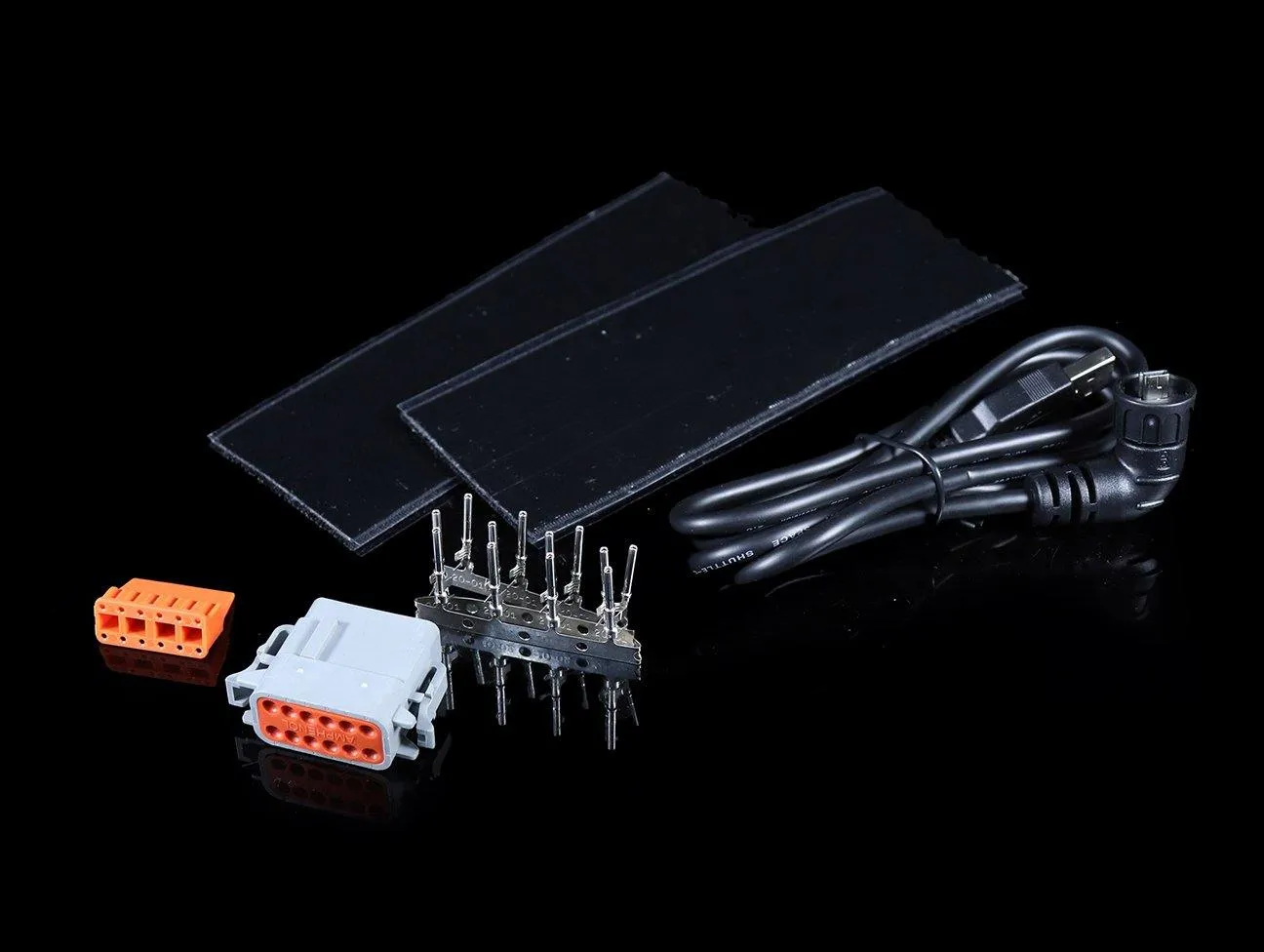

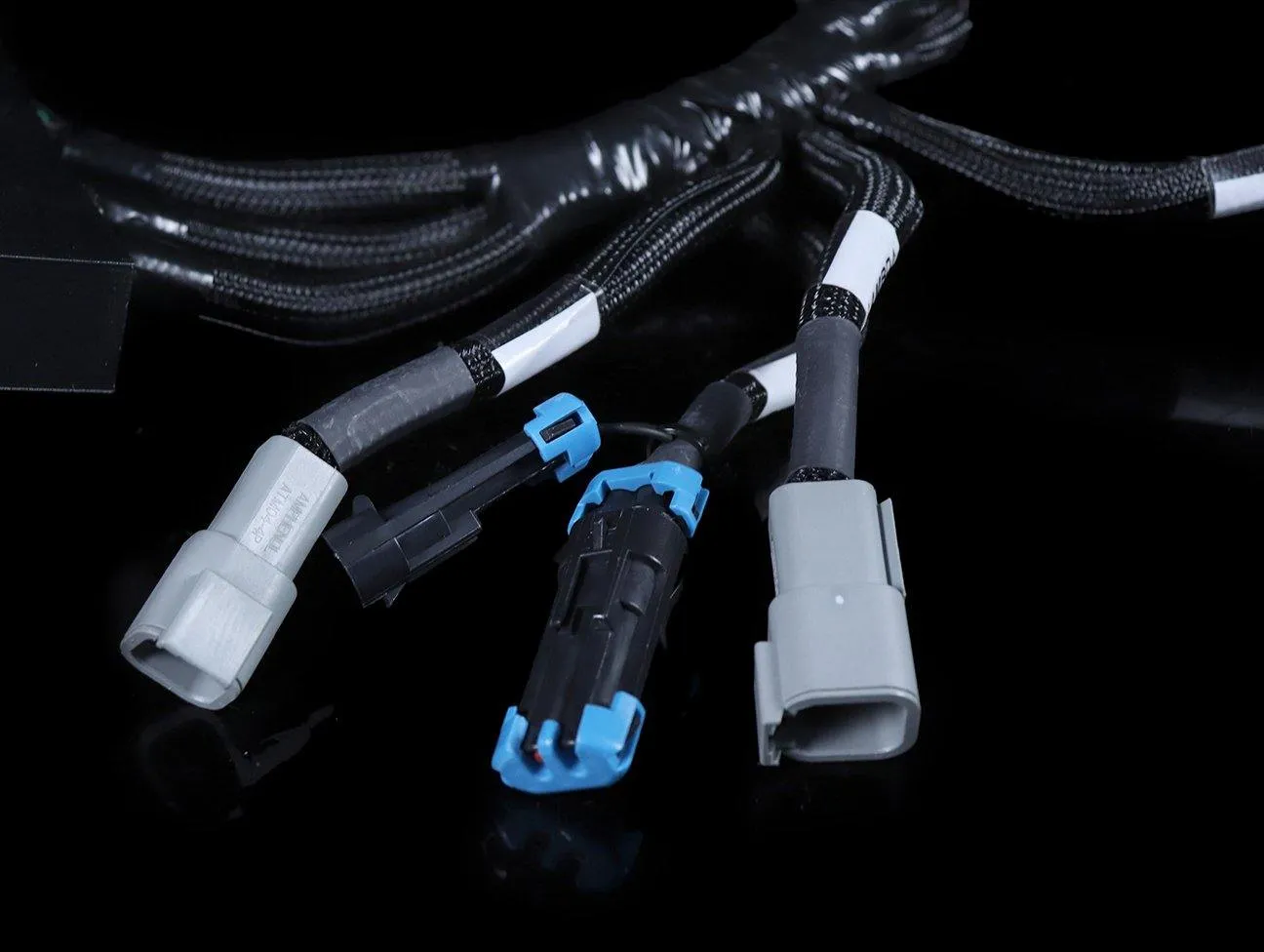

AEM's Plug & Play harness (sold separately) includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a Deutsch DTM 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.

The Infinity EMS delivers high-end engine control for the racing masses at a fraction of the cost. The Infinity-6 and -8h is even more affordable than its larger -8 and -10 version because it is designed for smaller racing engines using low impedance injectors up to 6 cylinders (Infinity-6) and race engines driving up to 8 high impedance injectors(Infinity-8h). It features a smaller footprint than the Infinity-8/-10 (5.855 x 5.55 x 1.8) and a single, weatherproof 80-pin connector. Built around a latest-generation 200MHz automotive processor, all Infinity systems are capable of processing 400 MIPS (millions of instructions per second).

All Infinity systems currently come fully enabled without the need for feature add-on purchases. Combined with AEM's industry leading after-purchase support system, including free technical support, the Infinity is the ultimate engine control solution for both professional race teams and weekend track cars.

The Infinity's airflow-based tuning models simplify start up and speed up the tuning process by eliminating many of the lookup and trim tables (Correction Tables) necessary in previous generation ECUs.

• Airflow model based (VE) tuning
• ECU Set Up Wizard simplifies start up
• Drive by wire
• Base maps included
• Flex fuel compatible
• Multi fuel capable
• Variable valve control
• Multiple boost control strategies
• Nitrous control
• Map switching (on the fly)
• Internal wideband O2 controller
• Dual Knock sensing circuit
• Data logging up to 64GB, up to 1KHz per channel
• Outputs to 3rd party dashes and data loggers
• Industry leading data transfer speed (up to 480Mb/sec)
• Broad range integrated engine protection strategies
• Sealed enclosure and IP67 rated comms ports
